Cargo lift ‌is a kind of lifting equipment used for cargo transport, mainly used to solve the problem of cargo transport in the vertical direction, widely used in commercial, warehousing, logistics and other industries.

Keywords : Convet Elevator Group

What is a Freight lift?
Freight lifts are also called Cargo lift or Goods lift. Hydraulic vertical freight lifts are cargo lifts driven by a hydraulic system; they are used for the straight-line transportation of goods between two or more points on the floor. The function is roughly equivalent to the lift, and different from the passenger lift, the hydraulic lift is only used for cargo transportation. Notices should be posted inside the freight lift, and passengers are prohibited from riding. Freight lifts are designed to move goods and materials throughout building. Compared with passenger elevators, trucks travel at a slower speed, can carry heavier loads, and can withstand harsher working conditions. Freight lift is a kind of vertical cargo transportation equpment that is widely used. It drives the pump station through a motor, and relies on the oil cylinder to drive the chain to drive the hydraulic lift to move horizontally. It is characterized by large carrying capacity and stable lifting. Freight lifts can be classified into commercial freight lifts and industrial freight lifts according to the place of use, and can be divided into scissor-type freight lifts and rail-type freight lifts from the appearance.







Advantages of freight lift:
1. Superior performance: suitable for factories, production lines, warehouses, shopping malls, shopping centers, exhibition halls and other places.
2. Environmental protection advantage: Lubrication-free design, no need to change the oil frequently.
3. Quiet operation: no noise and vibration
4. Energy-saving advantage: When going down, it is driven by the pressure generated by its own weight, which greatly saves energy.
5. Space saving: compact structure, small size, effective use of shaft space.
6. Large tonnage load: easily solve your problem of vertical transportation of goods.
7. Low failure rate: Due to the advanced hydraulic system and good control method, the lift operation failure rate can be lower.

















Precautions for using hydraulic vertical freight lift:
1. When using, the work surface should be kept level.
2. When the platform fails, the power supply should be cut off in time for maintenance.
3. It is strictly forbidden to use freight lifts for overloading.
4. Carriage items should be placed in the center of the freight lift.









































Why choose hydraulic vertical freight lift?
The hydraulic vertical freight lifting platform has the functions of anti-falling and interactive interlocking of upper and lower doors. you can set operation buttons on each floor and the working surface of the lifting platform to set up multi-point control for your cargo elevator. Whether used indoors or outdoors freight lifts can make work easier. The freight lift has large bearing capacity, good oil tank sealing, durable, equipped with emergency stop button, power can support manual descent, can be customized according to the actual application environment, can be installed indoors and outdoors, the installation location is unlimited.



Cargo Lift introduction

Cargo lift ‌is a kind of lifting equipment used for cargo transport, mainly used to solve the problem of cargo transport in the vertical direction, widely used in commercial, warehousing, logistics and other industries.

The design features and use scenarios of the freight elevator are as follows:

Model Loading Capacity Lifting height Min.height Table size Power
SJD0.5-4.5 500kg 4500mm 150mm 2000*1500mm 2.2kw
SJD1.0-4.5 1000kg 4500mm 150mm 2000*1500mm 3kw
SJD2.0-4.5 2000kg 4500mm 150mm 2000*1500mm 3kw
SJD3.0-4.5 3000kg 4500mm 160mm 2000*1500mm 3kw
SJD0.5-7.5 500kg 7500mm 150mm 1200*1200mm 1.5kw
SJD1.0-7.5 1000kg 7500mm 150mm 1800*1400mm 2.2kw
SJD2.0-7.5 2000kg 7500mm 150mm 2000*1500mm 2.2kw
SJD3.0-7.5 3000kg 7500mm 160mm 2000*1600mm 3kw
SJD1.0-10.5 1000kg 10500mm 150mm 1800*1400mm 2.2kw

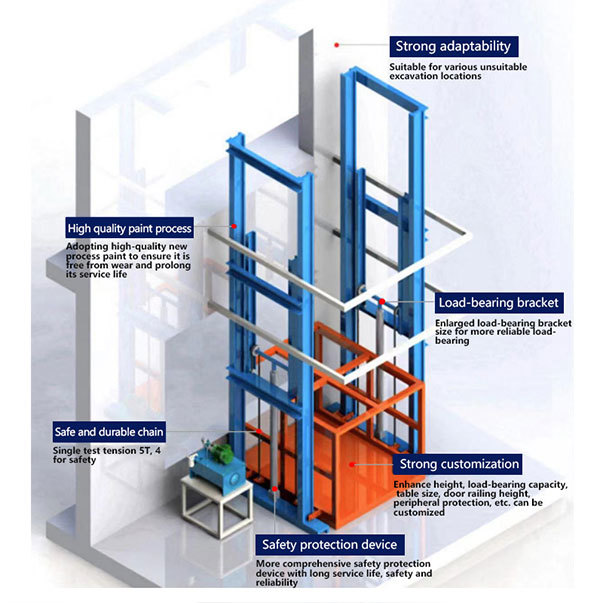

Design feature

cargo elevator:This is a standard freight elevator, mainly used for the transport of goods, usually accompanied by people. The car of the cargo elevator is long and narrow and runs between at least two vertical rigid guides. The performance of the cargo elevator is good and the price is affordable

‌hydraulic lift elevator: combined with the advantages of cargo elevator and electric hoist freight elevator, cost-effective, can meet the requirements of performance and safety, but also to adapt to the needs of low budget. The hydraulic lift cargo elevator can be customized according to the site space and needs of the size, the price according to the height, load and platform size varies ‌.

Usage scenario

‌commercial:Used for shopping malls, office buildings of goods transportation.
‌storage:Used for efficient vertical transport of goods in warehouses.
‌logistics:Used in logistics centers for fast and efficient handling of goods.
‌construction:Used for vertical transport of materials and equipment on construction sites.

maintenance

As a precise means of transport, scientific maintenance can greatly extend its service life. Regular inspection, cleaning, lubrication and adjustment are the key to maintaining the normal operation of the freight elevator. In addition, reasonable use and safety management are also important aspects to ensure the safe operation of the cargo elevator ‌.
