Traction elevators are one of the most widely used and efficient types of elevator systems, especially suited for mid- to high-rise buildings where speed, height, and energy efficiency are key considerations.

Classification :

Keywords : Convet Elevator Group

Home elevator is designed for personal home use, it has features like UPS backup power, progressive safety gear, overload protection, over voltage protection, emergency descent valve, proportional valve, light curtain, low noise, etc. The enclosure consists of stainless steel, aluminum alloy frame and tempered glass, forming solid structure.



Residential home elevators for sale have the main characteristics.
(1) There is no need to set up a machine room with high requirements and cost above the shaft, and the top room can be flush with the roof.
(2) The setting of the computer room is flexible. The hydraulic transmission system relies on the cylinder pipe to transmit power, so the location of the machine room can be set within 3 m from the shaft, and the occupied area of the machine room is only 1-2 M ²。
(3) The utilization rate of the shaft is high. Generally, the hydraulic elevator is not equipped with a counterweight device to improve the utilization rate of the shaft area.
(4) The strength of the shaft structure is low. Because the vertical loads such as the self-weight and load of the hydraulic elevator car all act on the shaft foundation through the hydraulic cylinder, the requirements for the building performance of the wall and top of the shaft are low.

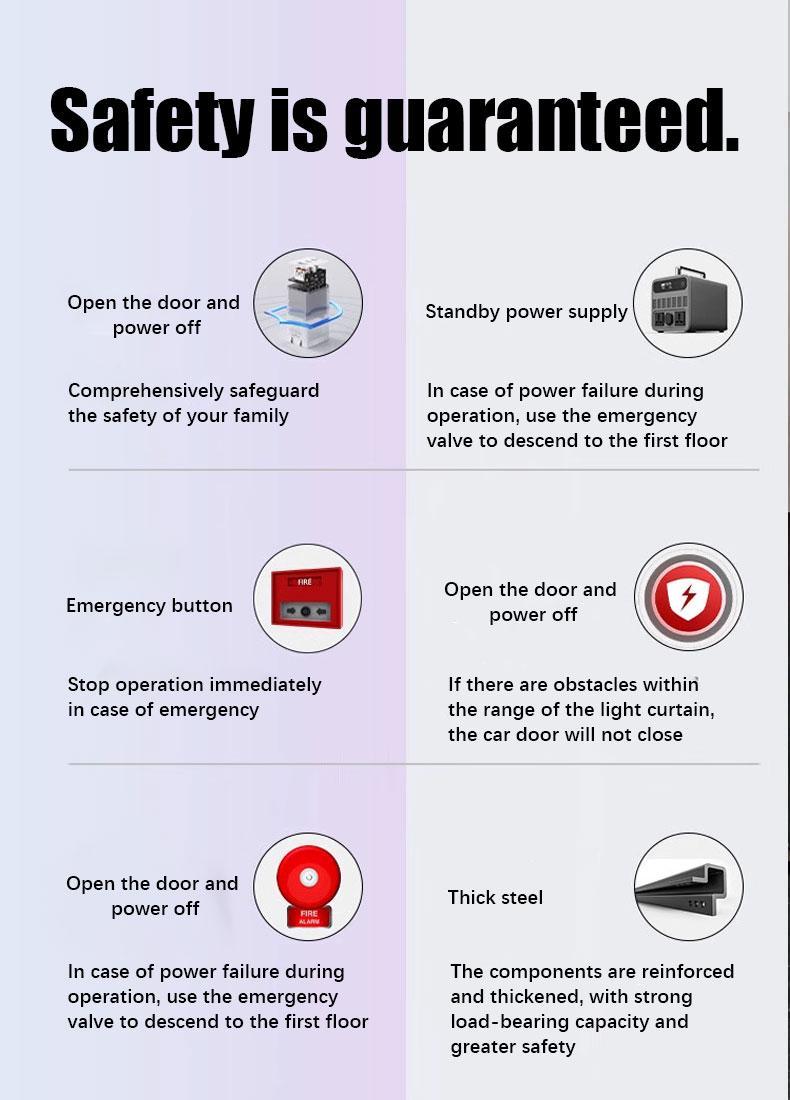

6.The safety measures for Commercial lift elevator are as follows:
1. Fall loss protection function, when the elevator suddenly decreases, the safety gear can firmly secure the elevator on the guide, so that the elevator car displacement does not exceed two centimeters
2. Touching bottom sensor, when an obstacle is encountered during the decline in the car, the car can stop running immediately
3. The trip switch, our elevator has three limited switches to prevent elevator
4. Electromagnetic lock function, when the elevator is running, the door is not opened, and when the elevator does not reach the destination floor, the landing door will not be opened.
5.UPS backup power, when power failure, it will make the cabin to get to the ground.
6. Silent pump station, it is quiet during lifting and lowering.

































Elevator lifts has the main characteristics :
1.Usual motor or silent motor
2.Digital display button
3.Anti-drop platform
4.Automatic ramp
5.UPS battery charge for power-cut
6.With cabin or not,push door or fold door.
7.Anti-drop device.









































Various styles available:

1. Luminous back panel, customized car, starry sky ceiling, marble floor, selected LED ceiling lights

High safety (multiple protections, anti-squeeze safety device, interconnected electromagnetic lock device, light curtain, safety ceiling, and mechanical principle, never fall off).







































Wooden box shipping, no need to worry about sea transportation collision































Product Description

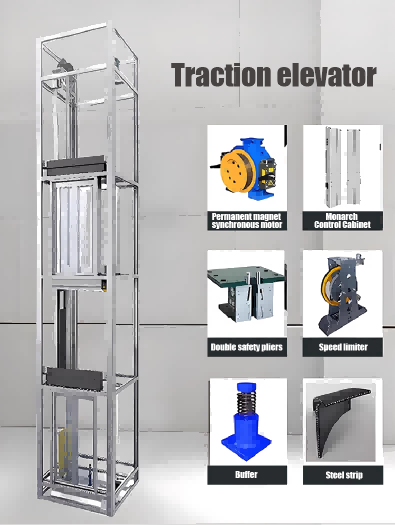

Traction elevators are one of the most widely used and efficient types of elevator systems, especially suited for mid- to high-rise buildings where speed, height, and energy efficiency are key considerations. Unlike hydraulic elevators that rely on fluid-driven pistons, traction elevators operate using a system of ropes, pulleys, and counterweights to move the cab vertically along a set of guide rails. This system provides a high level of precision and control, making traction elevators the preferred choice for skyscrapers, office buildings, and residential complexes with multiple stories.

Parameter

Product name Traction elevator
Lift height (M) minimum lifting height 3 meters/customized.
Installation space (mm) Minimal installation space 1000 x 1000,Maximum installation space: customized
Load (kg) 220-1500 kg
Lift speed (m/s) 0.4m-2.0m/s
Material 304 stainless steel,
Control mode Monarch Control System, VVVF
voltage 110V/220V/380V,single-phase/double-phase/three-phase or customize
Traction machine Shanghai Fassi

Working Principles and Technologies

Traction elevators work by using a hoist motor that turns a sheave (a pulley with grooves), over which steel cables are looped. One end of the cables is attached to the elevator car, while the other is connected to a counterweight that balances the weight of the cab and its passengers. The motor moves the sheave, which either raises or lowers the cab, while the counterweight helps to reduce the amount of energy required for the operation.

Traction elevators come in two main types:

    •    Geared Traction Elevators: Equipped with a gearbox connected to the motor, allowing for moderate speeds and suitable for buildings up to about 20 floors.
    •    Gearless Traction Elevators: Directly connect the motor to the sheave, enabling higher speeds and smooth performance, ideal for high-rise buildings.

Modern traction elevators often feature advanced technology such as variable frequency drives (VFDs) for efficient speed control, regenerative braking systems that recapture energy during descent, and microprocessor-based controllers for enhanced operation and diagnostics.

Advantages of Traction Elevators

Traction elevators offer several advantages:

    •    Energy Efficiency: The counterweight system helps reduce energy consumption, particularly during ascent, making these elevators more efficient compared to hydraulic systems.
    •    Speed and Performance: Traction elevators are capable of higher speeds and greater travel distances, which is essential for taller buildings.
    •    Space Savings: They typically require less machine room space as machine-room-less (MRL) models can be integrated into the hoistway, allowing for more flexible building designs.
    •    Smooth and Quiet Operation: Traction elevators provide a smoother, quieter ride due to their streamlined mechanism.
